Golf Ground Lighting Design

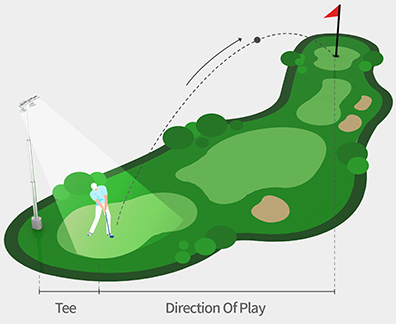

lighting position on the teeing ground should be located somewhat away from the teeing ground and care must be taken to ensure that the shadow caused by the lighting does not interfere with the play.
Also, vertical surface illuminance design should be supported so that players and spectators don’t miss the trajectory of the flying ball.
The position and height of the illuminometer on the vertical surface are checked according to the specified value.

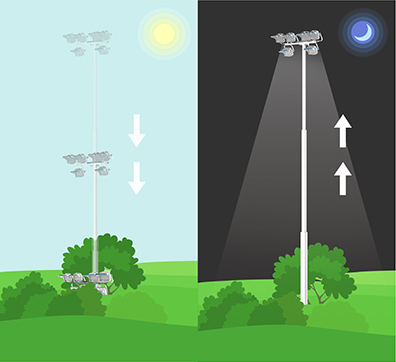

Smart Moving Tower Positioning
When we design, the height of lighting tower in the golf course is usually 15m. Since golf is an outdoor sports. Game is played on a wide open space, lightning design should be considered with lighting protector.Because of the nature of golf, players enjoy with scenery, the lighting towers are designed to be retractable, so that during the daytime when no lighting is used, it is recommended to keep the lighting towers down so that they are not conspicuous.

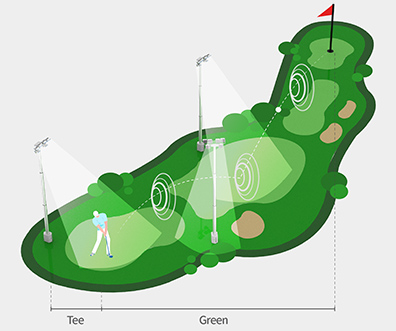

Golf Ground Light Tower Positioning

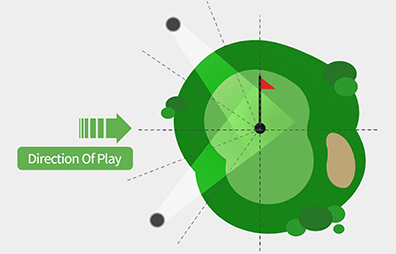

Since the golf course lighting can specify the number of hits and the expected shot position according to the course, it is necessary to fully reflect that in the lighting design.
Due to the small size of the golf ball, it is necessary to reflect the vertical surface luminance and the horizontal plane uniformity according to the position so that the ball does not disappear from the view at night shot.
It is important to closely check the level difference of the course and incorporate it into the design.
-Golf Ground Visivilty Lighting Design
Since the golf course lighting can specify the number of hits and the expected shot position according to the course, it is necessary to fully reflect that in the lighting design.
Due to the small size of the golf ball, it is necessary to reflect the vertical surface luminance and the horizontal plane uniformity according to the position so that the ball does not disappear from the view at night shot.
It is important to closely check the level difference of the course and incorporate it into the design.
Golf Ground Green Lighting Design

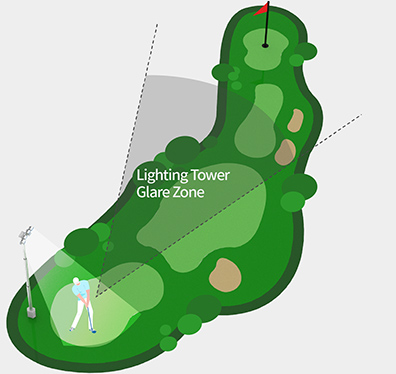

When designing the lighting of green area, it is important to proceed so as not to generate brightness reflected from the ground as much as possible during putting play, and it is important to position the aiming point of lighting so that it does not directly aim the player’s eyes
Designing with taking care of the uniformity so that you can concentrate on the putting in right position without a ball being obstructive coming from the teeing ground or the fairway
Golf Ground Light Pollution Minimization Design

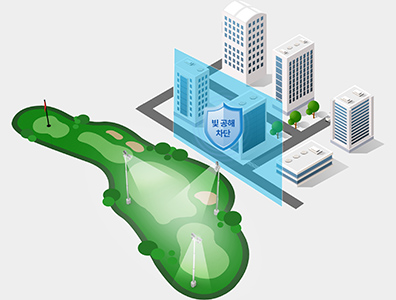

The golf course lighting is designed by minimizing the influence of the outflow lighting on the surroundings due to waste of unnecessary light according to the use purpose in designing.
Lighting should be designed so that light does not affect pedestrians, drivers or residential areas outside the stadium After calculation the outflow lighting out of the stadium, and redesign the lighting to the standard value.

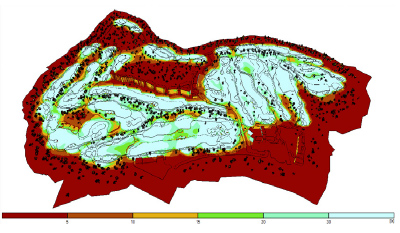

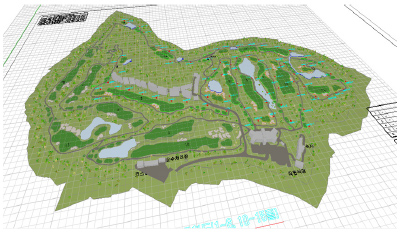

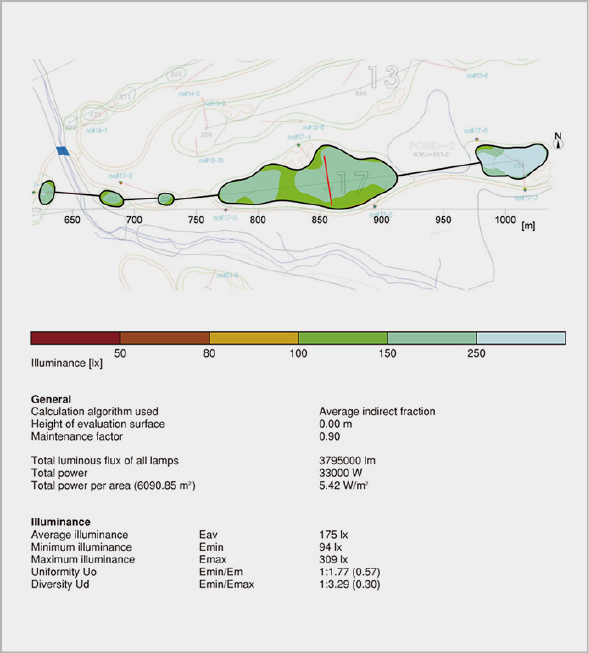

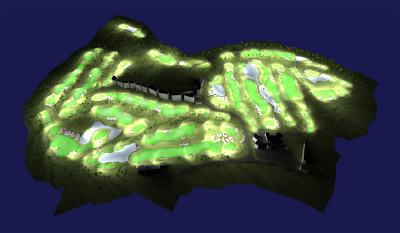

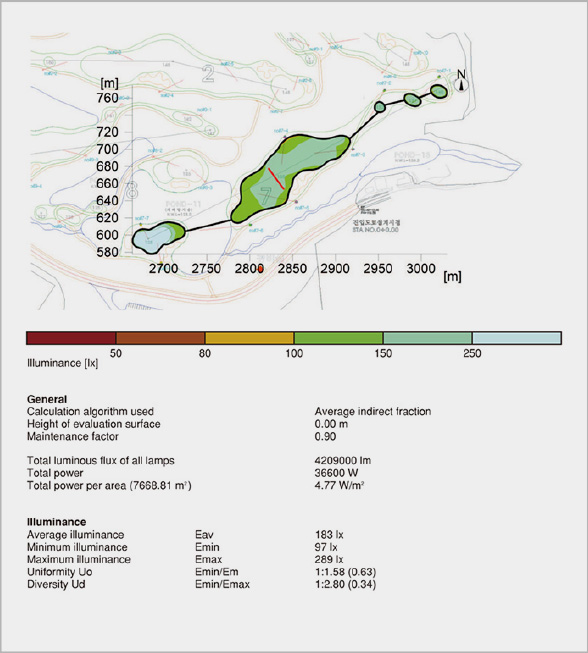

Golf Ground Illumination Simulation
Domestic Soccer Field Illuminance Standard
International Soccer Field Illuminance Standard
CLASS IV
CLASS III
NATIONAL
CLASS II
CLASS I

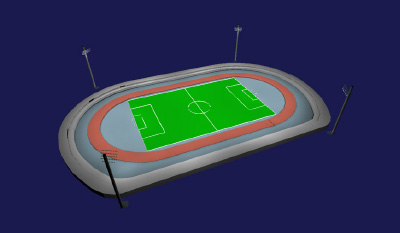

Soccer Field Lighting Design
-

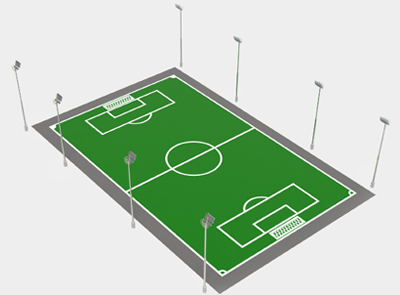

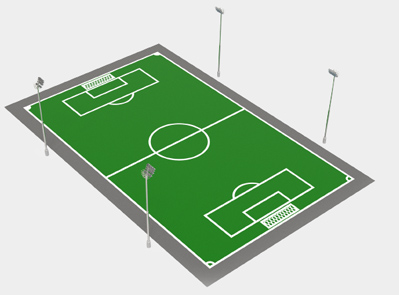

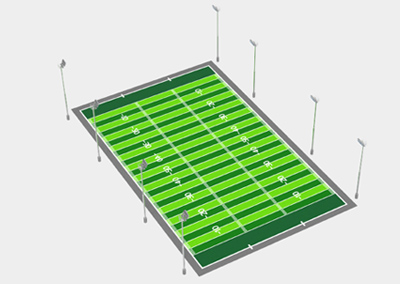

Light Tower 4 pole
-
Light Tower 6 pole
-
Light Tower 8 pole
Soccer Field Floodlight Installation Height
The installation height of a soccer field lighting fixture is an important issue in the design of sports lighting, and it should be positioned so that glare does not occur to the athlete running the field.
In the soccer field, considerable part of the gaze of the athletes, the spectators, and the camera traces the line of sight due to the characteristics of the game, the lighting design is carried out considering the part.

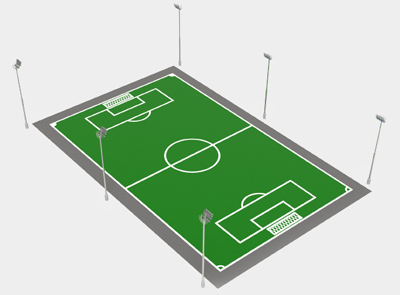

Soccer Field Floodlight Positioning

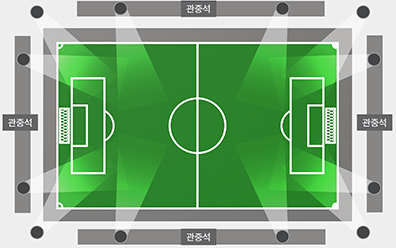

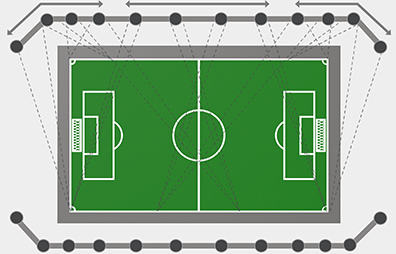

The light should be placed in a position where the glare phenomenon can be minimized to the athlete and spectators who play the game.
Soccer stadium is large in size, so there are a lot of outdoor stadiums. There are three types of lighting layouts, which are divided into corner layout, side layout, and roof side layout to be installed on the roof of the audience.

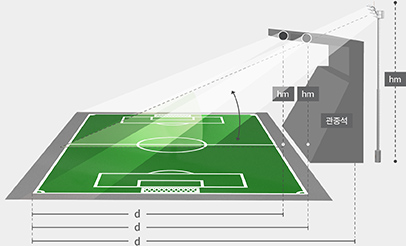

Soccer Field Floodlight Aiming Design
Soccer field lighting Aiming design should match the uniformity of the stadium and the shadows of the athletes and facilities should not affect the competition and watching.
When measuring the horizontal surface illuminance of the soccer field, the illuminometer is arranged in accordance with the size of the prescribed grid pattern.

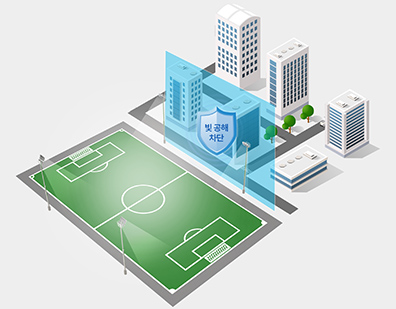

Soccer Field Light Pollution Minimization Design
The soccer game is classified as one of the high-speed sports, and it is also classified as one of the most popular games. So football is one of the sports that broadcasts frequently.
When designing the lighting of the football stadium, proceed according to the location of the broadcasting camera. Pre-review each camera location to finalize the design so that the same light is gathered

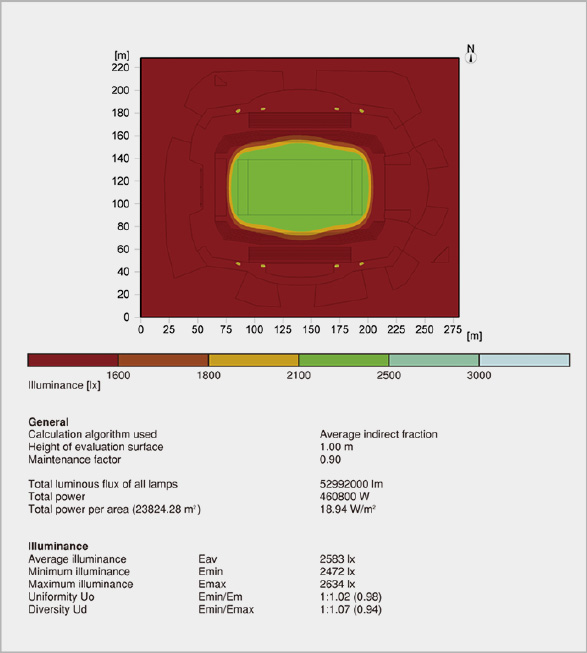

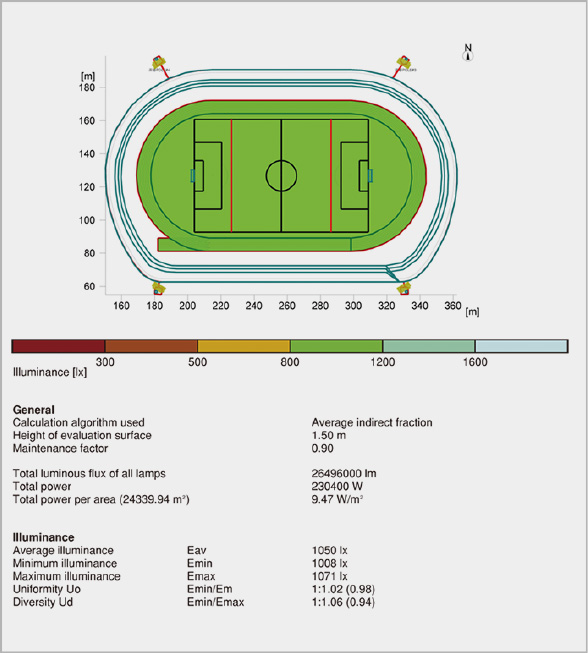

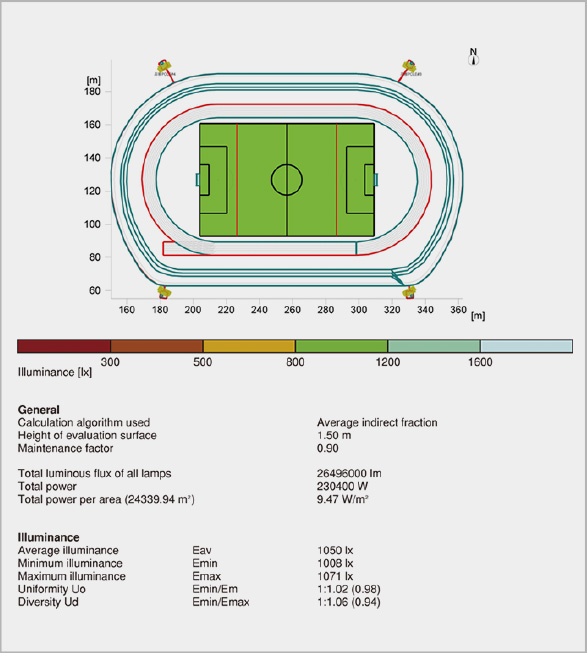

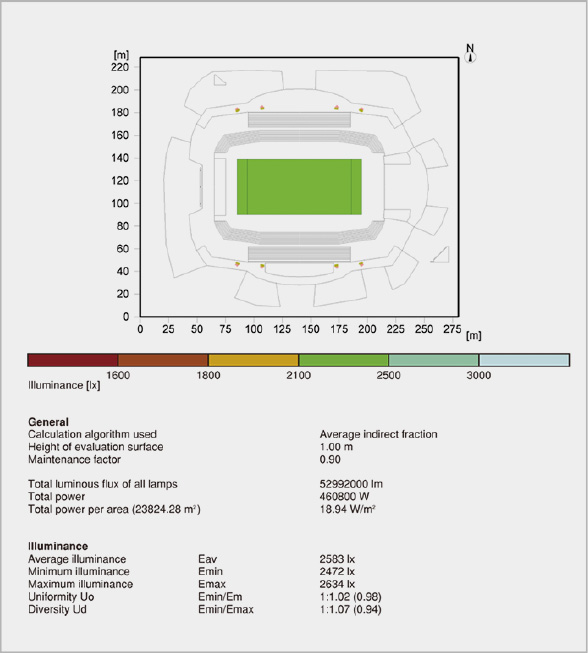

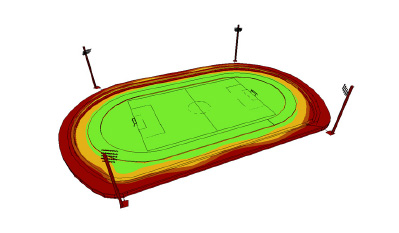

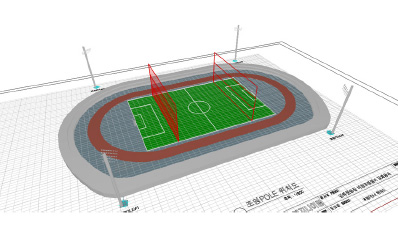

Soccer Filed Illumination Simulation
Domestic Baseball Field Illuminance Standard
International Baseball Field Illuminance Standard

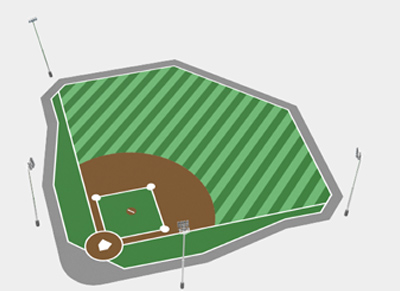

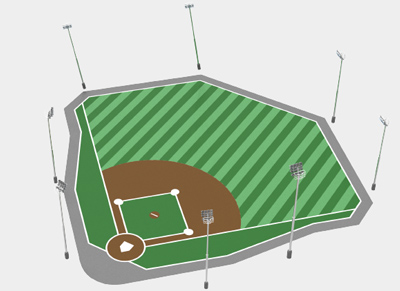

Baseball Field Lighting Design
-
Light Tower 4 pole
-
Light Tower 6 pole
-
Light Tower 8 pole

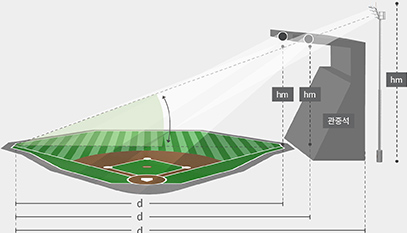

Baseball Field Floodlight Installation Height
The installation height of baseball field lighting fixture is an important issue in the design of sports lighting, and it should be positioned so that glare does not occur to the athlete running the field.
In the baseball field, considerable part of the gaze of the athletes, the spectators, and the camera traces the line of sight due to the characteristics of the game; the lighting design is carried out considering the part.

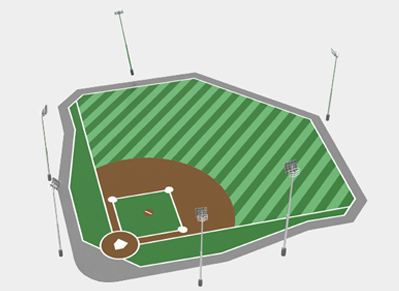

Baseball Field Floodlight Positioning

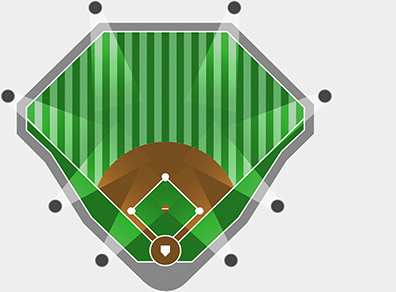

The lighting aiming design should match the uniformity of the stadium and the shadows of the athletes and the facilities should not affect the players and spectators.
The lighting design of horizontal surface illuminance of the baseball field should be divided into infield and outfield.
Vertical surface illuminance design is also important because balls in the baseball fields are often floated high in the nature of the game.

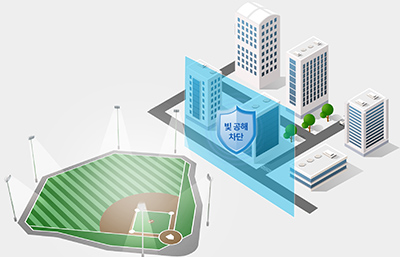

Baseball Field Light Pollution Minimization Design
The baseball game is classified as one of the high-speed sports, and it is also classified as one of the most popular games. So baseball is one of the sports that broadcast frequently.
When designing the lighting of the baseball field, proceeds design according to the location of the broadcasting camera. Pre-review each camera location to finalize the design so that the same light is gathered.

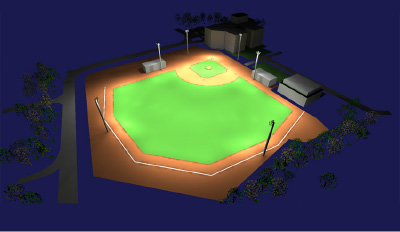

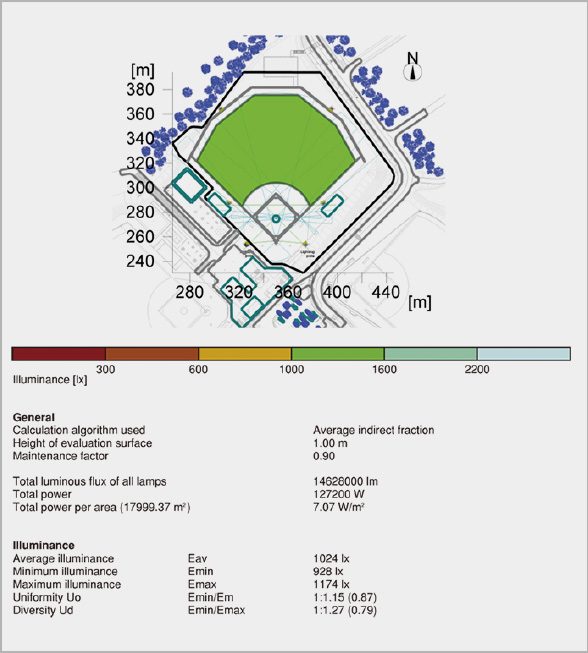

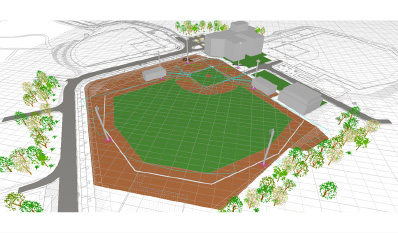

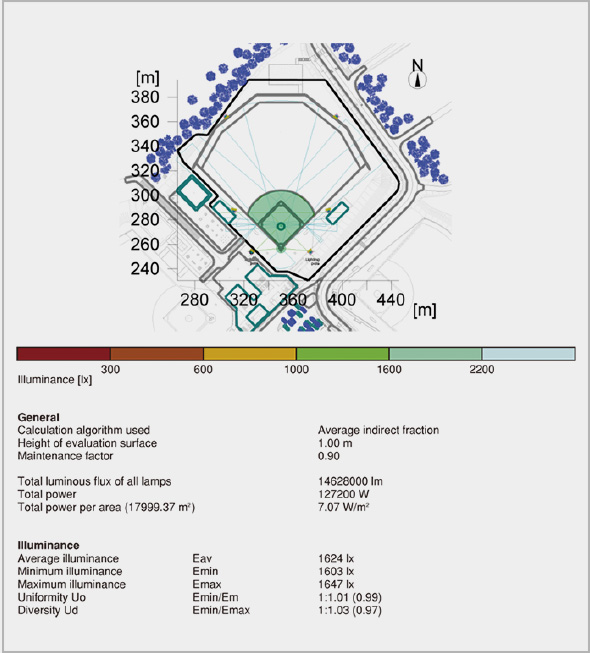

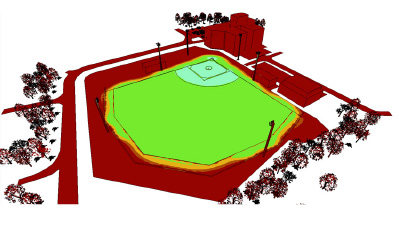

Baseball Filed Illumination Simulation
Domestic Outdoor Tennis Court Illuminance Standard
Domestic Indoor Tennis Court Illuminance Standard
International Tennis Illuminance Standard
CLASS IV
CLASS III
CLASS II
CLASS I
International Indoor Tennis Illuminance Standard
CLASS IV
CLASS III
CLASS II
CLASS I

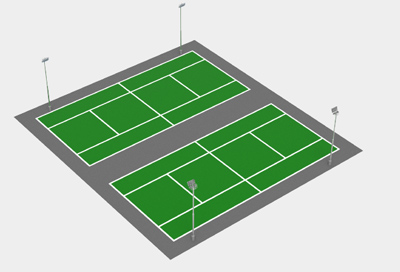

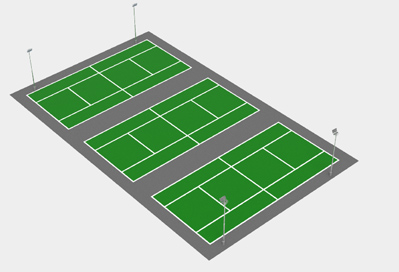

Tennis Court Lighting Design
-
Light Tower 4 pole
-
Light Tower 6 pole
-
Light Tower 8 pole

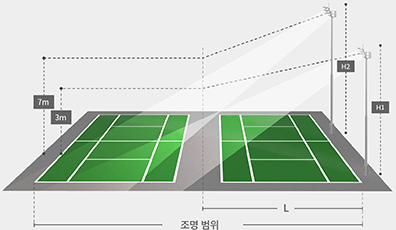

Tennis Court Floodlight Installation Height
The height of the tennis court lighting design is important because the vertical surface illuminance is reflected in the design so that the player and the spectator do not miss a fast moving ball.
The installation height of lighting fixture in a tennis court is an important issue in the design of sports lighting, and it should be positioned so that glare does not occur to the player running the field.
In the tennis court, considerable part of the gaze of the athletes, the spectators, and the camera traces the line of sight due to the characteristics of the game, the lighting design is carried out considering the part.

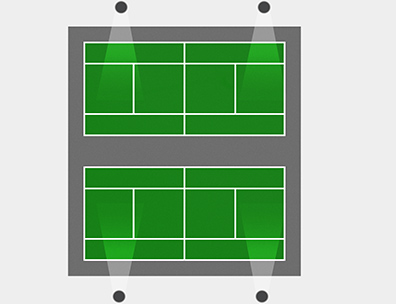

-Tennis Court Floodlight Positioning
The lighting aiming design should match the uniformity of the stadium and the shadows of the athletes and the facilities should not affect the players and spectators.
It is a checkpoint that vertical surface illuminance is very important when designing a tennis court lighting. Lighting design is reflected by the vertical surface illuminance of each area so that athletes or spectators do not miss the ball.
Vertical surface illuminance design is also important because in the tennis court because balls are often floated high in the nature of the game.
Tennis Court Light Pollution Minimization Design

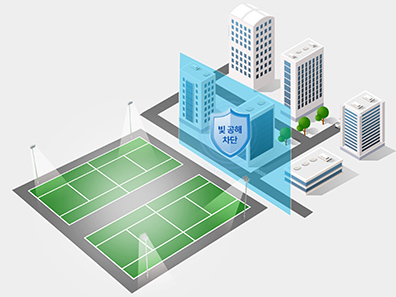

It is designed by minimizing the influence of the outflow lighting around by the waste of unnecessary light when designing the tennis court lighting.
Should be designed so that light does not affect pedestrians, drivers or residential areas outside the tennis court.
Calculate the outflow lighting that goes out of the tennis court and redesign the lighting to the reference value.

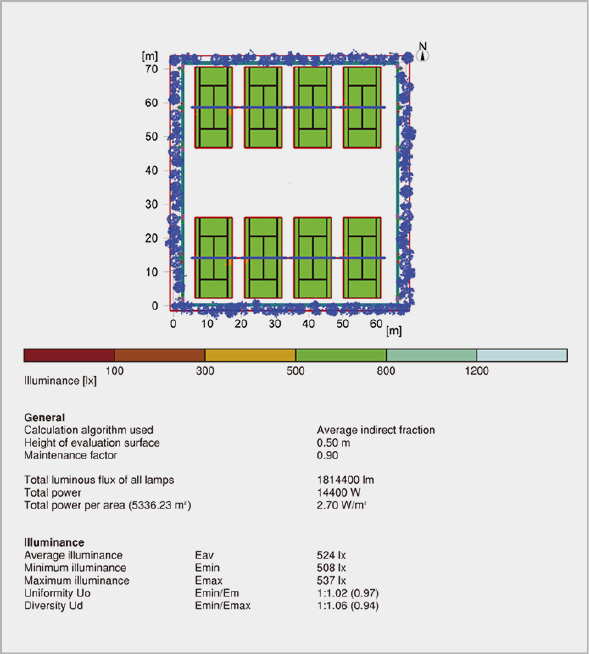

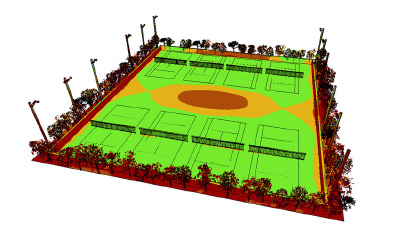

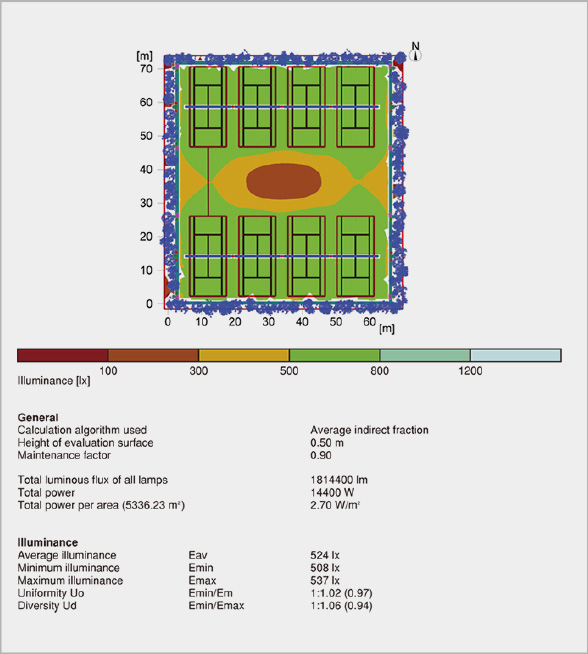

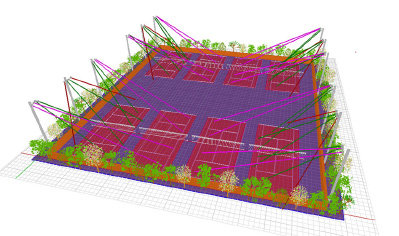

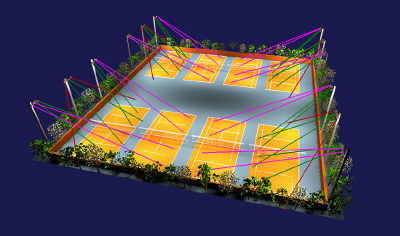

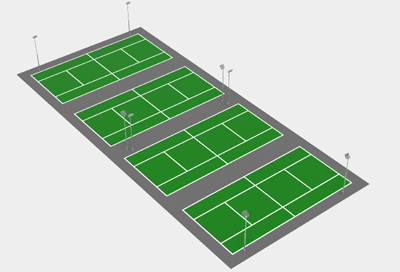

Tennis Court Illumination Simulation
Domestic Basketball Court
Illuminance Standard
International Basketball Court Illuminance for Broadcasting
International Basketball Court Illuminance Standard
International Indoor Basketball Court Illuminance Standard

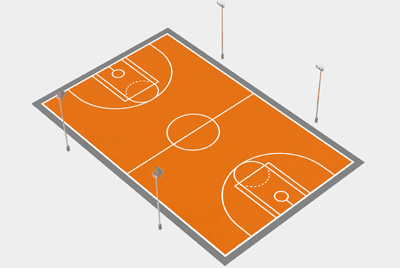

Basketball Court Lighting Design
-

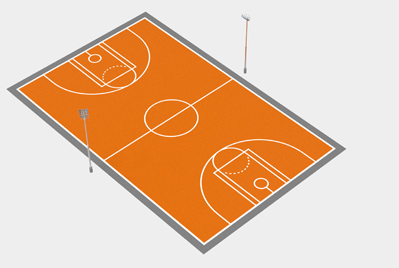

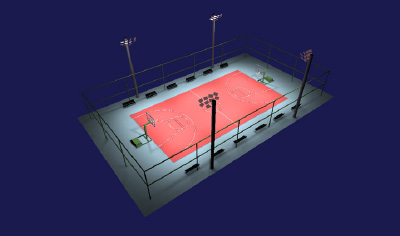

Light Tower 2 pole
-
Light Tower 4 pole
Basketball Court Floodlight Installation Height
The installation height of a basketball court lighting fixture is an important issue in the design of sports lighting, and it should be positioned so that glare does not occur to the player running the field.
In the basketball court, considerable part of the gaze of the athletes, the spectators, and the camera traces the line of sight due to the characteristics of the game, the lighting design is carried out considering the part.

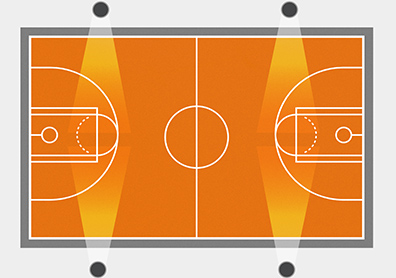

Basketball Court Floodlight Positioning

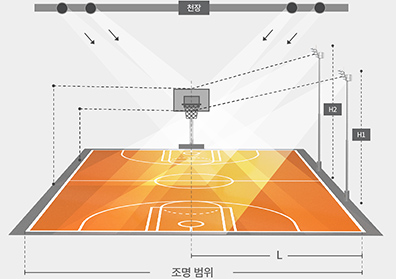

Lighting has to be installed at the position with minimum glare for players and spectators Basketball court is usually at outside because of huge size.

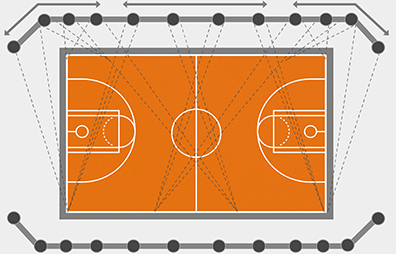

Lighting placement are usually 2 ways. First one is side placement, and the other one is roof side placement at stand roof.
Basketball Court Floodlight Aiming Design
The lighting aiming design should match the uniformity of the stadium and the shadows of the athletes and the facilities should not affect the game and watching.
When measuring the horizontal surface illuminance of the basketball court, the illuminometer is arranged in accordance with the size of the prescribed grid pattern.

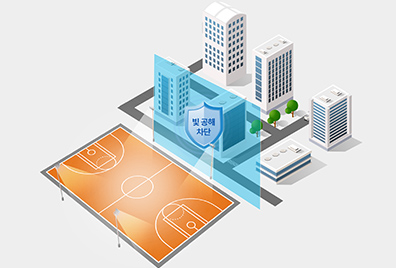

Basketball Court Light Pollution Minimization Design
It is designed by minimizing the influence of the outflow lighting around by the waste of unnecessary light when designing the basketball court lighting.
Design should be designed so that light does not affect pedestrians, drivers or residential areas outside the basketball court Calculate the outflow lighting that goes out of the basketball court and redesign the lighting to the reference value

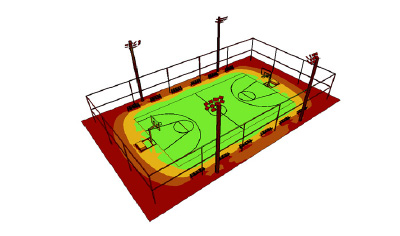

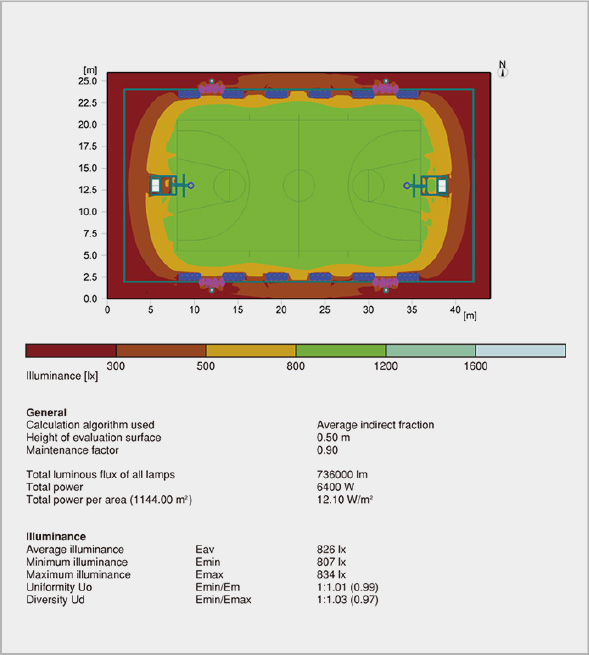

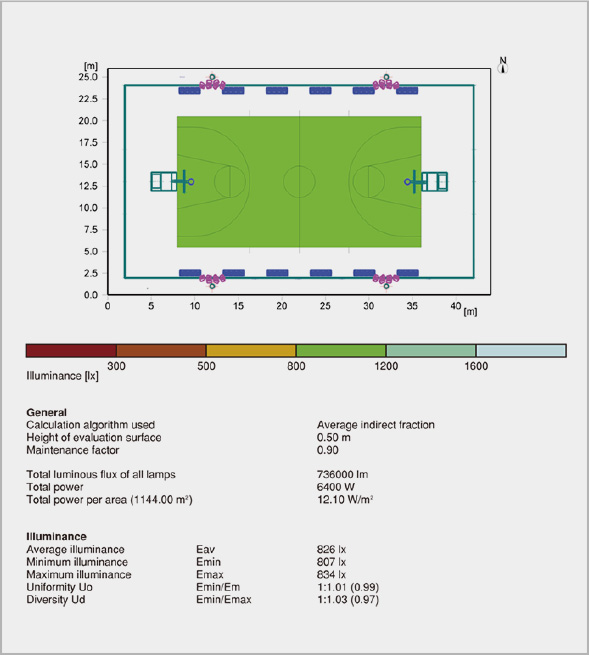

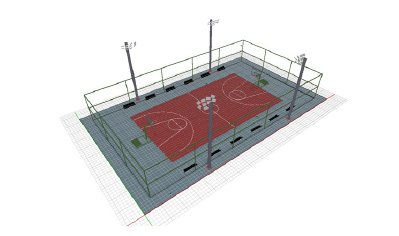

Basketball Court Illumination Simulation
DomesticAmerican Football Field Illuminance Standard
InternationalAmerican Football Field Illuminance Standard
CLASS IV
CLASS III
CLASS II
CLASS I
American Football FieldLighting Design
-

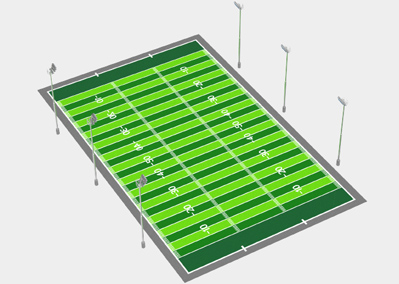

Light Tower 4 pole
-
Light Tower 6 pole
-
Light Tower 8 pole
American Football Field Floodlight Installation Height
The installation height of the lighting equipment is an important issue when designing sports lighting, and it should be positioned so that glare (glare) does not occur to players running on the field.
In the case of a football game, the eyes of players, spectators, and cameras track the ball to a large extent.

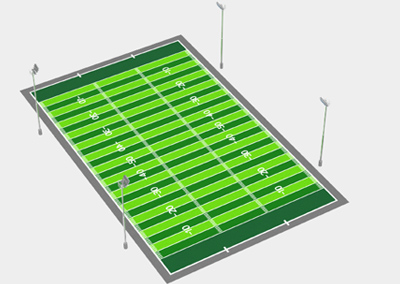

American Football Field Floodlight Positioning

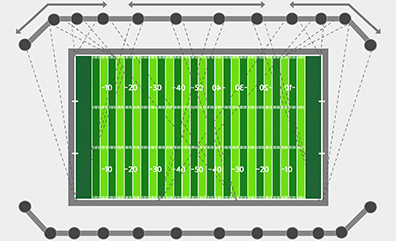

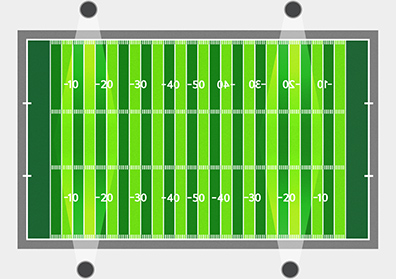

Lighting should be installed in a location that minimizes glare for players and spectators playing American football.
Be careful not to design the aiming point of the lighting tower to face each other and the place where the player's view is mainly directed, and make sure that the player is not disturbed by the dark shadows of the players or facilities.

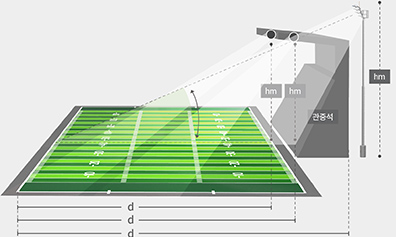

American Football Field Floodlight Aiming Design
The American football field lighting aiming design should ensure that the stadium is uniform and that the shadows of players or facilities do not affect the game and spectators.
When measuring the illuminance of the horizontal plane of a football stadium, the illuminance meter is placed and measured according to the size of the stipulated grid pattern.
American Football Field Light Pollution Minimization Design

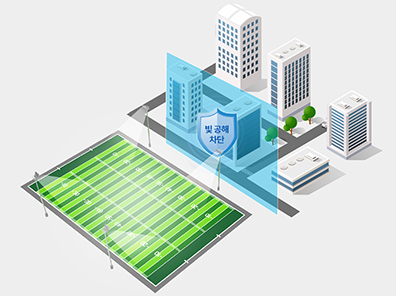

When designing according to the intended use, it is designed to minimize the effect of leaking lighting around the waste of unnecessary light.
The design must be so that light does not affect pedestrians, motorists, or residential areas outside the football field.
Redesign the lighting to match the standard by calculating the leaking lighting outside the football field.

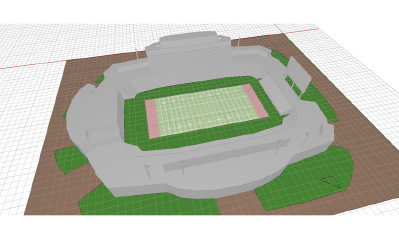

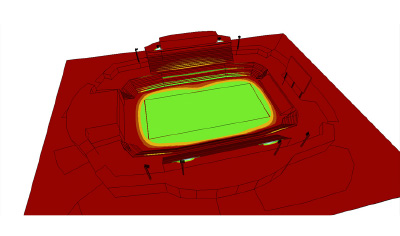

American Football Field Illumination Simulation
Domestic Indoor Swimming Pool Illuminance Standard
Domestic OutdoorSwimming Pool Illuminance Standard
International Swimming Pool Federation Indoor Illuminance Standard
International Swimming Federation Pool Deck Illuminance Standard

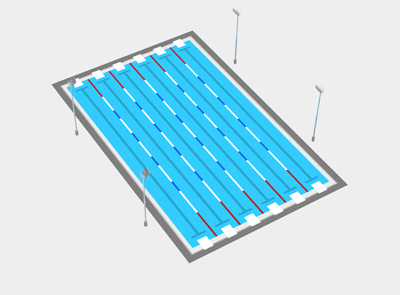

Swimming PoolLighting Design
-

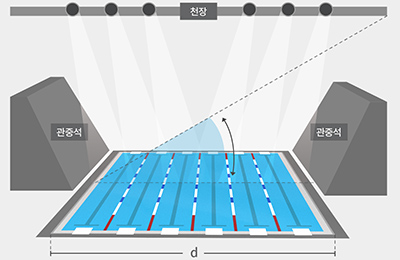

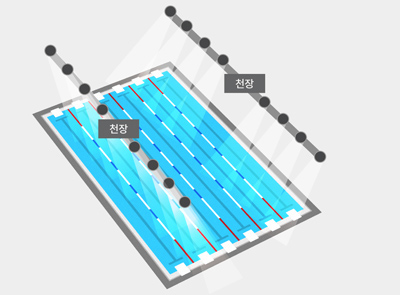

Indirect lighting method
-
direct lighting method
Swimming Pool Floodlight Installation Height
The installation height of a swimming pool lighting fixture is an important issue in the design of sports lighting, and it should be positioned so that glare does not occur to the player.
In the swimming pool, considerable part of the gaze of the athletes, the spectators, and the camera traces the line of sight due to the characteristics of the game, the lighting design is carried out considering the part.
Swimming Pool Seats
Swimming Pool No Seats

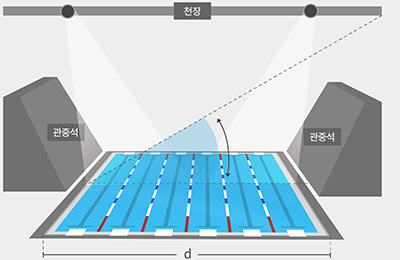

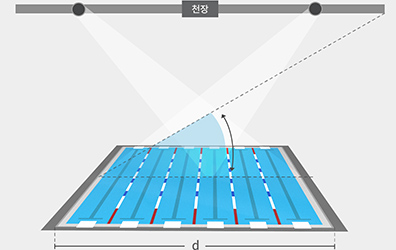

When designing swimming pool lighting about recreation level, sometimes natural light is used, but when it is used for game, natural light is excluded as much as possible, and lighting design is carried out by adjusting uniformity only with artificial lighting.
If the swimming pool lighting is direct light, be careful of flash. This has to be considered that the lighting in the pool is not only for the player who looking at the ceiling doing the backstroke, but also for the audience and referee due to the reflection of the water.

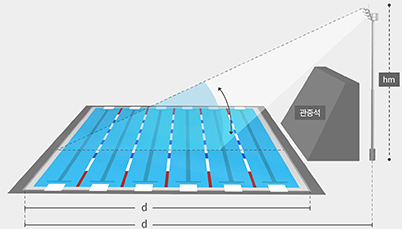

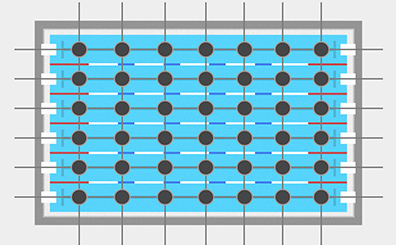

Swimming Pool Floodlight Aiming Design
The lighting aiming design should match the uniformity of the stadium and the shadows of the athletes and the facilities should not affect the players and spectators.
When measuring the horizontal surface illuminance of the swimming pool, the illuminometer is arranged in accordance with the size of the prescribed grid pattern.

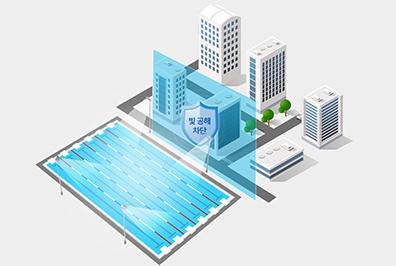

Swimming Pool Light Pollution Minimization Design
It is designed by minimizing the influence of the outflow lighting around by the waste of unnecessary light when designing the swimming pool lighting.
Lighting should be designed so that light does not affect pedestrians, drivers or residential areas outside the swimming pool.
Calculate the outflow lighting that goes out of the swimming pool and redesign the lighting to the reference value.
-
